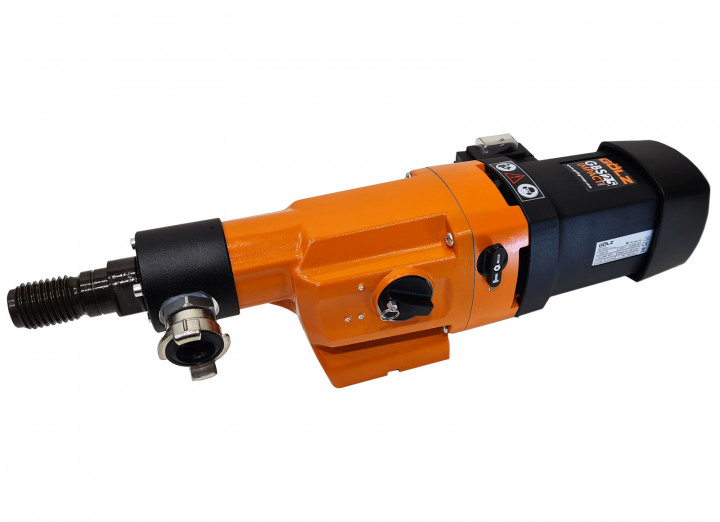

GBS25

Core Drilling Machine with impact
_______

• 2,5kW – 230V electric engine
• 2-speed (750/1500 min-1)
• Drill range up to 202 mm
• Wet and Dry
• Thermal overload protection
• Drill Bit connection 1 1/4“ UNC
• Impact frequency 10.000 / 21.000 (p/min)
• Electronic softstart
• Ring collar Ø 60mm for swan neck connection
on drill stand
• Mounting plate for direct connection to drill stand

Specifications
GBS25
Motor Single Phase 230V, 50-60 Hz
Power 2,5 kW
Gears 2
RPM 750/1500 min-1
Bit-Ø in Concrete Ø 20-202 mm
Drill bit Connection 1¼” UNC
Water connection Gardena
Ring collar Ø 60 mm
Weight 8,9 kg (19lbs)
Order number 0295 007 5486
