Emission-free energy supply
for our environment – for clean air


_______

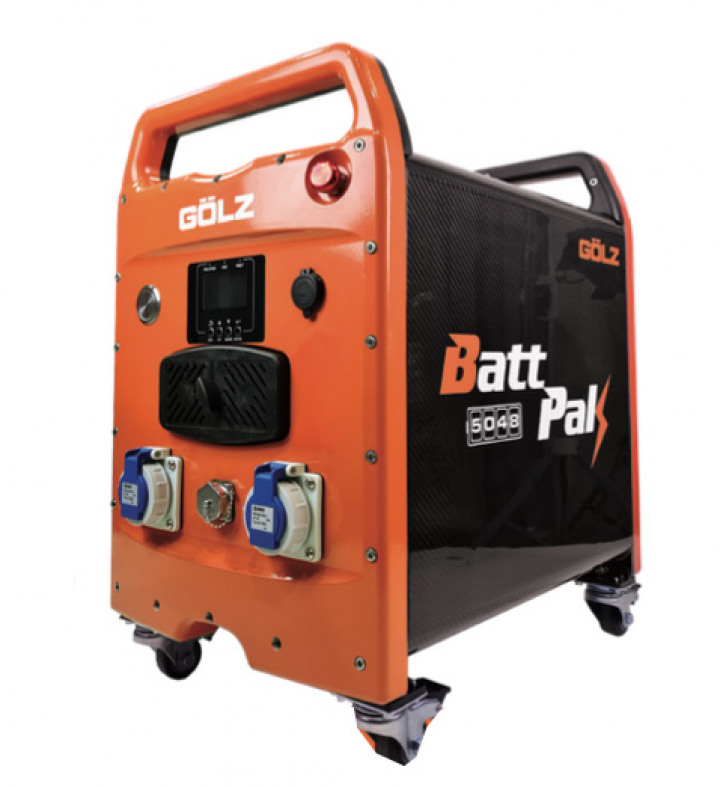

Mobile Power Supply

for:
• Electrical construction equipment
• Plasma cutters and welders
• Battery chargers
• Luminaires in industry, construction sites and rescue
• Catering, refrigerators and coffee machines
• Outdoors, camping and festivals

Emission-free Energy

• Free from noise and exhaust fumes
• No refueling of petrol generators
• High performance, 5kW continuous operation
• battery capacity 4,8 kWh (expandable)
• Short charging time, 3 hours
• Degree of protection IP67, for extreme conditions

Running times for electrical consumers

Power Runs @ 4,8 kWh
Core drill motor 3 kW 1,6 h
Tile Saw 1 kW 4,8 h
Electric Hammer Drill 2 kW 2,4 h
Festival cooling Box 60 W 80 h
Angle Grinder 125 840 W 5,7 h
Dirty Water Pump 1,5 kW 3,2 h
Concrete Mixer 200L 800 W 6 h
Freezer100 W 48 h


Technical Data

BattPak5048 Xpansion9600
Continuous Power 5 kW ./.
Peak Power 7,5 kW (10 sec.) ./.
Battery Capacity 4,8 kWh 9,6 kWh
Battery Technology LiFePO4 (Lithium-Iron-Phosphate)
AC-Output 2 × 230 V, 16A, 50 Hz ./.
USB-Output USB-A 5V, USB-C 12V ./.
Charging time: 230 V 3 h 6 h
Charging time: EV Station (up to 5 kW) 2 h 3 h
Life cycles 6.000 6.000
IP Classification IP67 IP67
Weight 70 kg 100 kg
Order Number BP5048 BP9600

Delivers up to 139.2 kWh when using XpansionPak 9600. (max. 14 supplements)
Expandable to 400V, 15 kW with 3 pieces BattPak 5048 (battery capacity 14.4 kWh) with converter.
