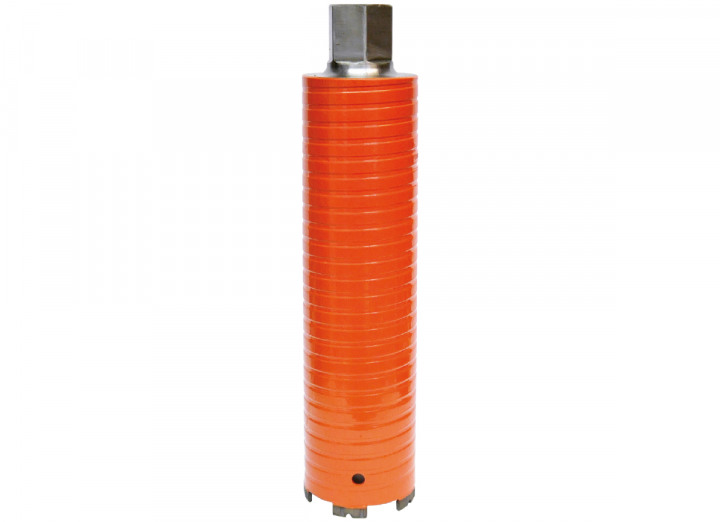

KT45

Dry Drill Bit - Standard
_______

The standard version of the KT45 with an effective length of 300mm impresses with its high drilling speed and good service life.

• 10mm segments hight
• Connection 5/4“
• Brickwork, Limestone, Pumice, Bricks, Poroton, further abrasive Materials

Ø
(mm)
Length
(mm)
Segments (mm)
L x B x H
#
Order-
number
42 300 24×3,2×10 3 D640 445 3042
52 300 24×3,2×10 4 D640 445 3052
62 300 24×3,2×10 4 D640 445 3062
72 300 24×3,2×10 5 D640 445 3072
82 300 24×3,2×10 5 D640 445 3082
92 300 24×3,2×10 5 D640 445 3092
102 300 24×3,2×10 6 D640 445 3102
107 300 24×3,2×10 6 D640 445 3107
112 300 24×3,2×10 6 D640 445 3112
122 300 24×3,2×10 7 D640 445 3122
127 300 24×3,2×10 7 D640 445 3127
132 300 24×3,2×10 7 D640 445 3132
152 300 24×3,2×10 7 D640 445 3152
162 300 24×3,2×10 8 D640 445 3162
182 300 24×3,2×10 8 D640 445 3182
202 300 24×3,2×10 8 D640 445 3202
