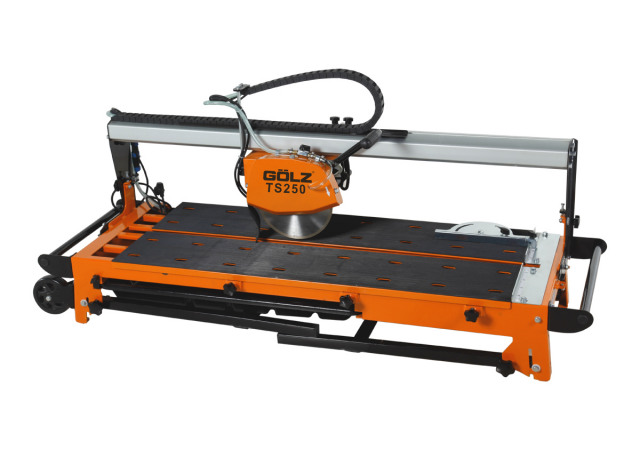

TS200/250

Professional tile cutting machines
_______

TS200, Blade Ø 200 mm – Cutting length 720 mm
TS250, BladeØ 250 mm Cutting length 1.140 mm

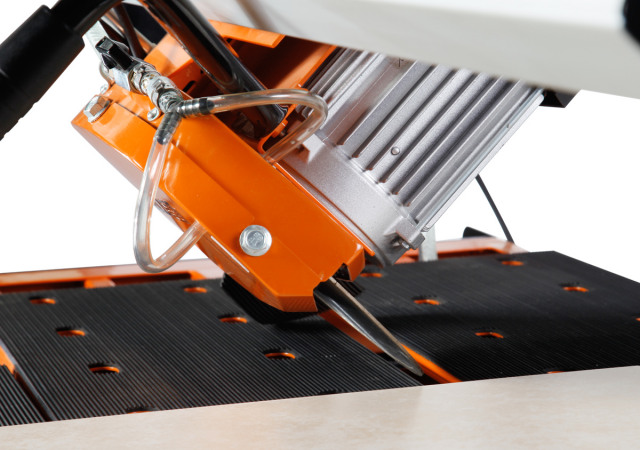

  • Cutting head adjustable up to 45° (Jolly cutting)

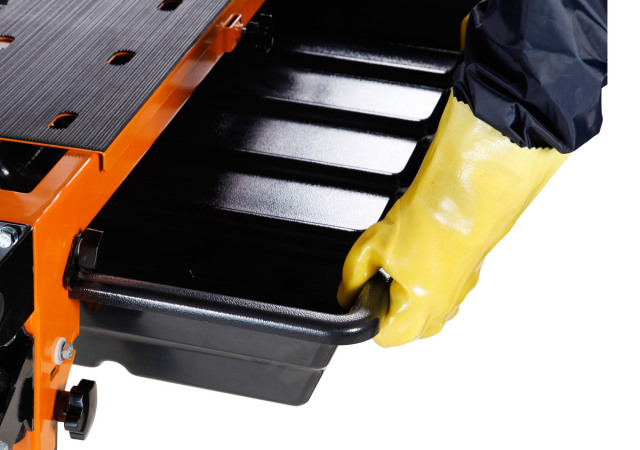

  • Removable water tub, easy for cleaning
  • Foldable legs
  • Adjustable cutting length

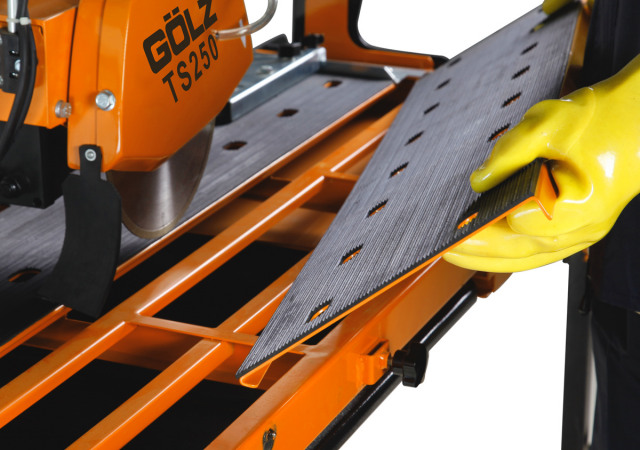

  • Removable cutting table, easy for cleaning

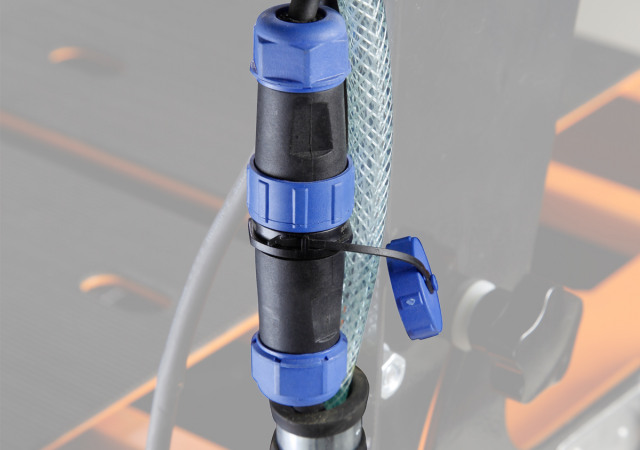

  • Electric water pump with quick coupling, easy for changing the pump
  • Pluggable blade guard for easy changing of diamond blade




Specifications
GÖLZ TS200 GÖLZ TS250
Motor Electric, 230V, 50Hz, IP54 Electric, 230V, 50Hz, IP54
Power 1,3 KW 1,3 KW
Max. cutting depth 40 mm 65 mm
Max. blade size 200 mm 250 mm
Arbor hole 25,4 mm 25,4 mm
Cutting length 560 mm (720 mm) 980 mm (1140 mm)
Shaft speed 2.800 min-1 2.800 min-1
45° miter-cut Built-In Built-In
Water pump S2, 230 V, 50 Hz, 55 Watt S2, 230 V, 50 Hz, 55 Watt
Blade flange size ø 64 mm 64 mm

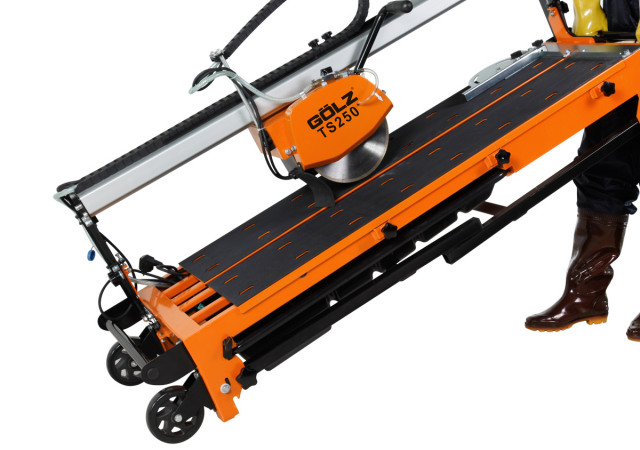

Transport wheels yes yes
Cutting table (LxW) 720 × 480 mm 1140 × 480 mm
Dimensions (LxWxH) 1220×540×1299 mm 1640×540×1299 mm
Weight 57 kg 72 kg
Order-Nr. 0289 200 1000 0289 250 1000
Accessories
Side table (optional accessory) 0289 200 1900
Spare water pump with connector plug 0289 400 9002
Set of Transport wheels 0289 400 9068
