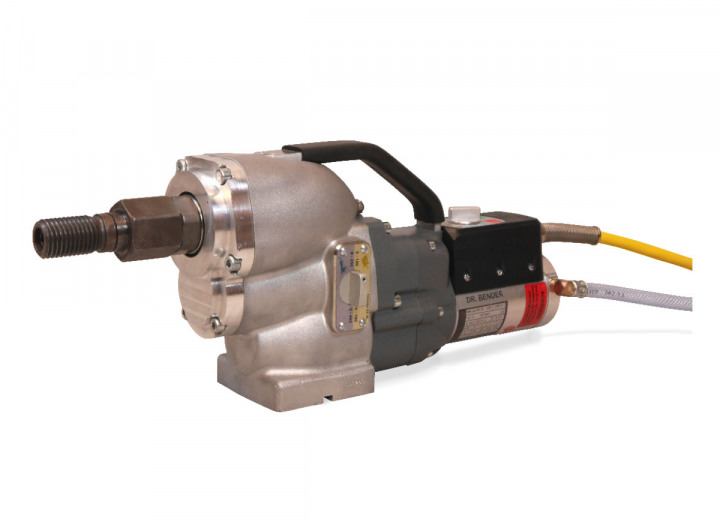

Drilling motor RX SL

The alternative solution to a cut off saw on cart. Compact - Lightweight - Quiet - Stable
_______
  • Drilling – up to Ø 1.000 mm maximum
  • The wide voltage range allows operation at 230 volts and 400 volts – 480 volts AC
  • The machine stops immediately by electronic quick-stop function
  • Integrated service display
  • An up to 30% higher efficiency brings higher power output and more torque
  • Durability by using high-quality components
  • Ergonomic design with handy dimensions




Specification
Phase 3~ 1~
Rated voltage 400 V / 480 V 230 V
Rated power 12.000 W 3.700 W
Rated frequency 50-60 Hz 50-60 Hz
Rated current 32A 16A
Rated speed 0-100/0-180/0-250/0-480 min-1 0-100/0-180/0-250/0-480 min-1
Rated torque 1.500/830/600/300 Nm 700/380/280/145 Nm
Drill bit diameter 1.000/600/250/120 mm 600/350/250/120 mm
Tool fitting UNC 1 1/4“, flange exchangeable UNC 1 1/4“, flange exchangeable
Cooling medium water water
Weight 16,5 kg 16,5 kg
Order Number B102429 B102429
