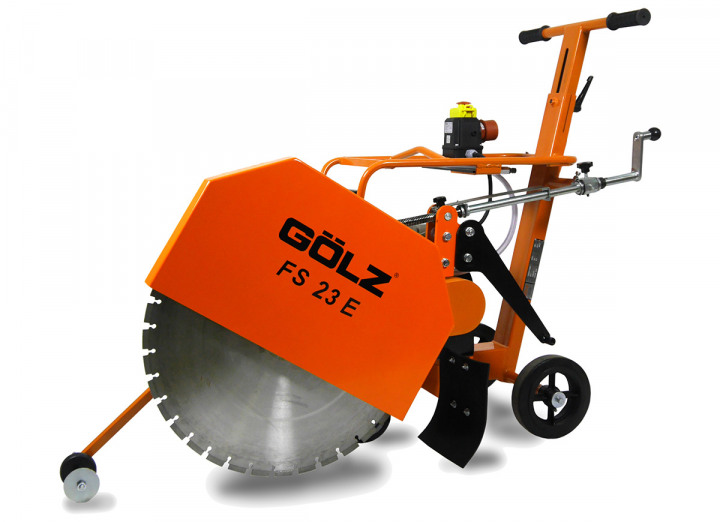

FS23E

Compact electric Floor Saw with pivoted sawing arm for cutting in closed spaces.
_______
  • Adjustable handles for operators comfort
  • Cutting depth adjustment by handwheel
  • Cutting depth indicator
  • Front cutting guide
  • Parking break
  • Big rear wheels for good chassis clearance
  • Water cooling through the blade shaft

Specifications
Max Cutting depth 230 mm
Blade diameter 600 mm
Shaft size 25,4 mm
Water-connection external
Engine 3-pase electric
Engine power 400 V; 4 kW; 50 Hz
Shaft speed 1.360 min-1
Feed motion Push
Cutting depth adjustment Handwheel
Power transmission V Belt Kit
Dimensions(LxWxH) 1070×530×890 mm
Weight 108 kg
Order number 0282 023 1000

Diamond Blades
Diamond Blades for Asphalt and Concrete, please check our Diamond Tools catalogue.
